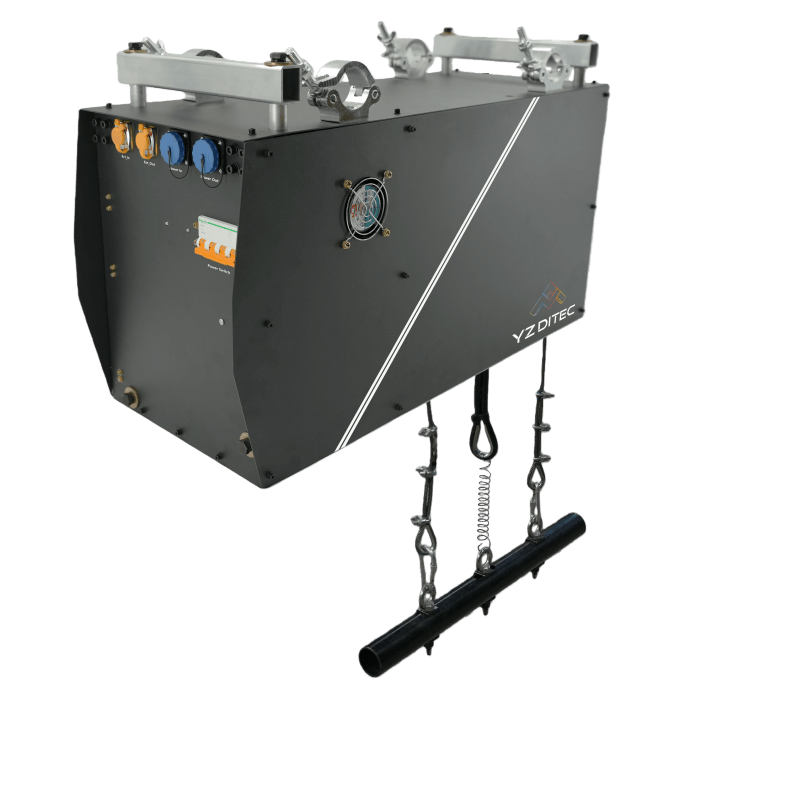

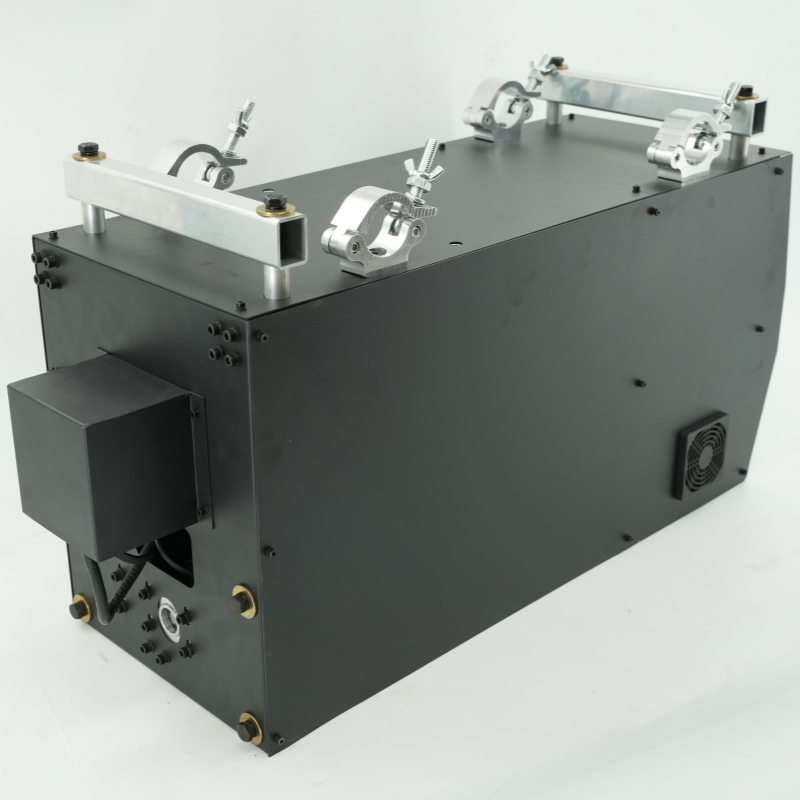

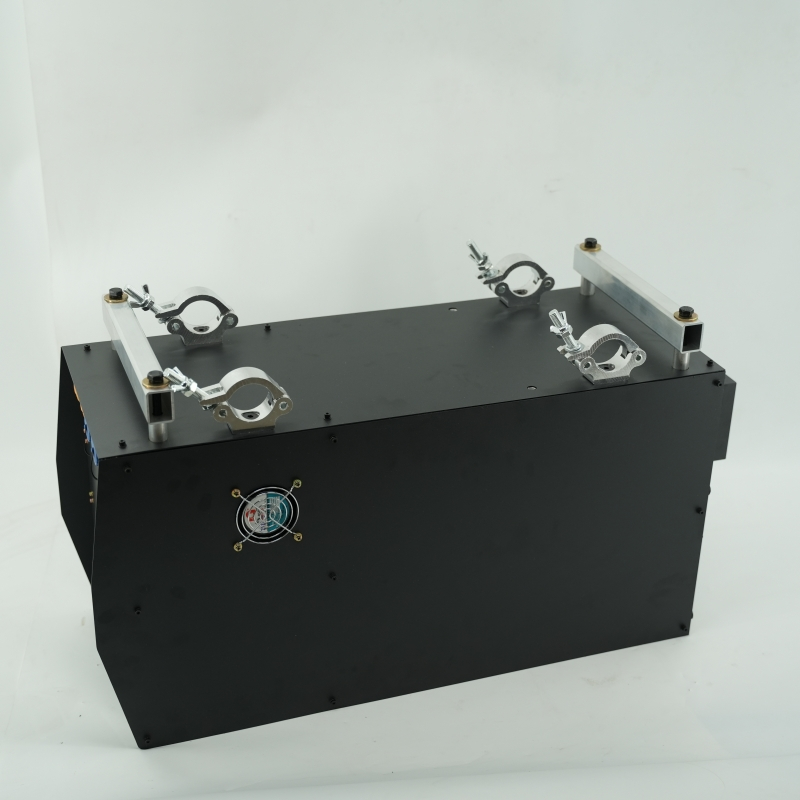

In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment.
Speed & Precision
Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale.
Safety, Layered
Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level.
Integrated. Simplified.
Composite cable unifies power and control in a single run with a high structural safety margin.
Faster. Lighter. Stronger.
Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
Specifications
⚙️ Performance
| Parameter | Value |
|---|---|
| Rated Load (per unit) | 50 kg |
| Maximum Speed | 0.65 m/s |
| Rated Stroke | 8 m/15m |
| Synchronization Error | < 1 mm |
🔌 Electrical & Power
| Parameter | Value |
|---|---|
| Supply Voltage | AC 380 V ±15%, 50–60 Hz |
| Total Power Consumption | 850 W (excluding direct output) |
| Output | 220 V / 1,300 W + RJ45 Network |
| Ingress Protection | IP20 |
| Operating Temperature | 0 °C to 55 °C |
| Electrical Components | Industrial-grade |
📡 Control & Communication
| Parameter | Value |
|---|---|
| Control Method | Closed-loop control |
| Communication Protocol | EtherCAT high-speed bus (ring-topology redundancy) |
| Multi-Point Synchronization | Supported |
| Control Interface | NW-JSP-F (I/O) |
| Pass-Through Connector | SD13, 5-pin |
| External Control Pass-Through | Switched by mating plug |
🛡️ Safety
| Parameter | Value |
|---|---|
| Braking System | Dual mechanical brakes + electronic protection + forced self-locking |
| Emergency Brake | Standard |
| Slack-Rope Detection | Dynamic torque monitoring |
| Load / Weight Detection | Standard |
🔩 Mechanical & Rigging
| Parameter | Value |
|---|---|
| Load-Bearing Wire Ropes | 2 × Ø6 mm (single-rope breaking strength ≥ 21 kN) |
| Secondary Safety Wire Rope | Ø4 mm × 1,000 mm × 1 pc |
| Suspension Hook (for fixtures) | T30 × H100 × W130 mm × 4 pcs |
| Mounting Method | Vertical suspension |
📦 Physical & Packaging
| Parameter | Value |
|---|---|
| Enclosure Dimensions (L × W × H) | 900 × 320 × 475 mm |
| Net Weight (per unit) | 63 kg |
| Packaging | Carton or flight case |
🔗 Included Cables & Accessories
| Item | Specification |
|---|---|
| Signal Interconnection Cable | 8 × 0.2 mm², 1.5 m × 1 pc |
| Power Interconnection Cable | 5 × 2.5 mm², 1.5 m × 1 pc |
| Powerable Pass-Through Cable | 4 × 2 × 0.2 mm² + 3 × 0.75 mm² |
CategoríaEspecificaciónSistema de frenadoFrenos electromagnéticos duales (respaldo redundante)MotorServomotor con codificador absoluto de CASistema de controlConsola BW y controlador principalSistema de cuerdasCables de acero con factor de seguridad 12:1 + dispositivo antienredosInstalaciónCompatible con cerchas estándar (móviles y permanentes)Monitoreo de cargaCélulas de carga integradas (compatibles con GB/T 36731-2018)
Detalles
In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment. Speed & Precision Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale. Safety, Layered Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level. Integrated. Simplified. Composite cable unifies power and control in a single run with a high structural safety margin. Faster. Lighter. Stronger. Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
Detalles
Control de movimiento de precisión para entornos exigentesCaracterísticas principales1. Servoaccionamiento de alto rendimientoPosicionamiento ultrapreciso (precisión de ±1 mm)Control de velocidad suave (0,01-0,27 m/s ajustable)Respuesta de par instantánea para manipulación de cargas pesadas2. Control inteligente de curvasAceleración/desaceleración adaptativaAlgoritmos antibalanceo para cargas de péndulo4. Aplicaciones versátilesInstalaciones del club: Funcionamiento silencioso para locales nocturnosCentros comerciales: Seguro para espacios públicos con vigilancia 24/7Maquinaria escénica:Artistas voladores (hasta 1000 kg)Movimientos dinámicos del conjunto
Detalles
Sistema de vuelo de calidad profesional para presentaciones en escenaDescripción general del sistemaUn sistema de espectáculos aéreos de alta precisión diseñado para eventos teatrales y en vivo profesionales. Combina una suave elevación vertical y un movimiento horizontal para crear efectos escénicos dinámicos.
Detalles
Precision-engineered for dynamic stage rigging. Powered by a 750 W servo motor with absolute encoder and SKM028B hypoid gearbox, it delivers a maximum vertical speed of 1.17 m/s with exceptional positioning repeatability.
Detalles

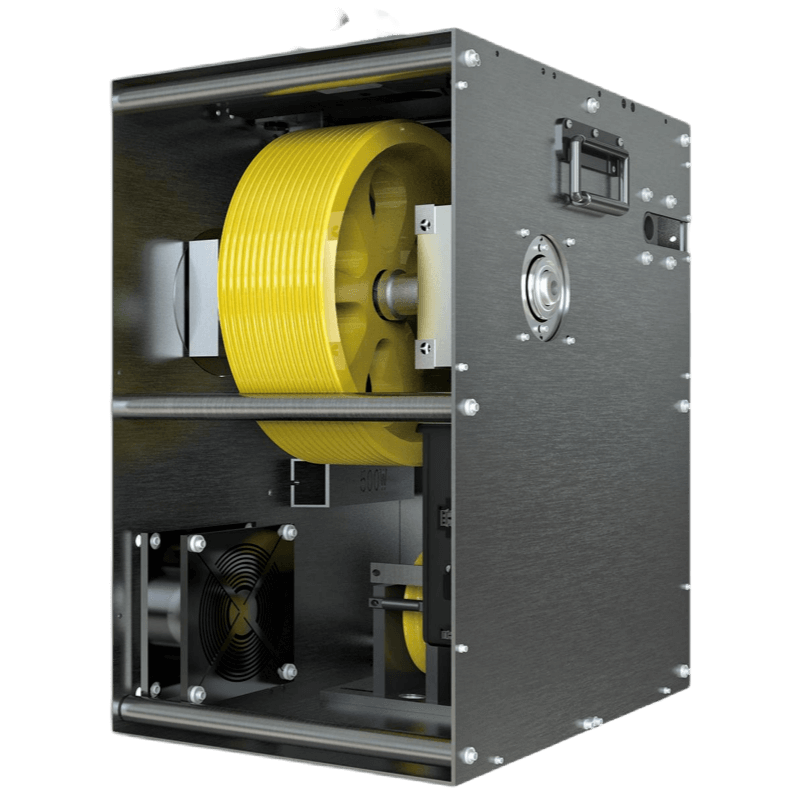

Precision-engineered for lightweight scenic rigging. Powered by an 850 W servo motor with absolute encoder and RV075 worm gearbox, it delivers a maximum vertical speed of 0.78 m/s with reliable, repeatable vertical positioning for demanding production environments.
Detalles

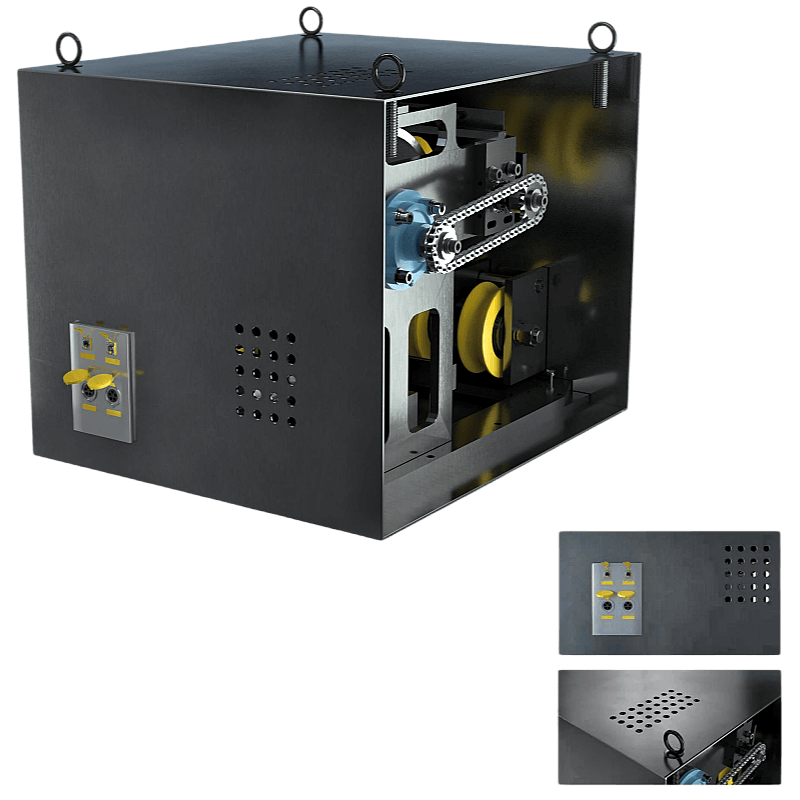

500 kg intelligent stage lifting winch — precision, power, and perfect synchrony for live entertainment. Driven by an absolute-encoder AC servo motor with worm-gear reducer, this winch delivers a SWL of 500 kg across three selectable speed ratings — 0.27, 0.35, and 0.42 m/s — with motion modes ranging from synchronised level lift/lower to differential multi-point tilt, giving automation teams precise spatial orientation control over scenic elements and LED screens in concerts, theatrical productions, and touring shows.
